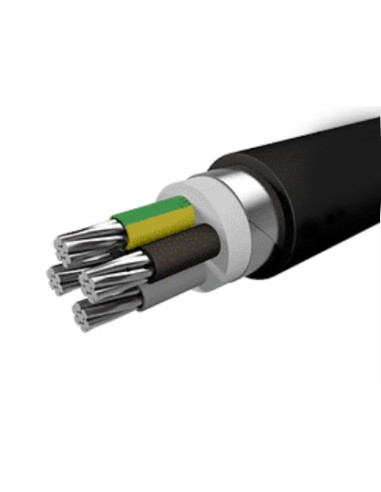

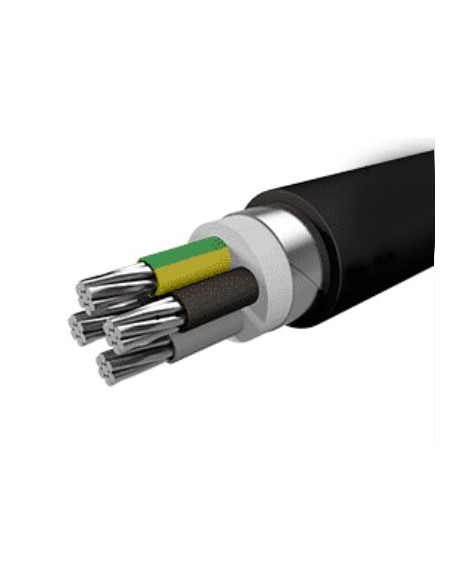

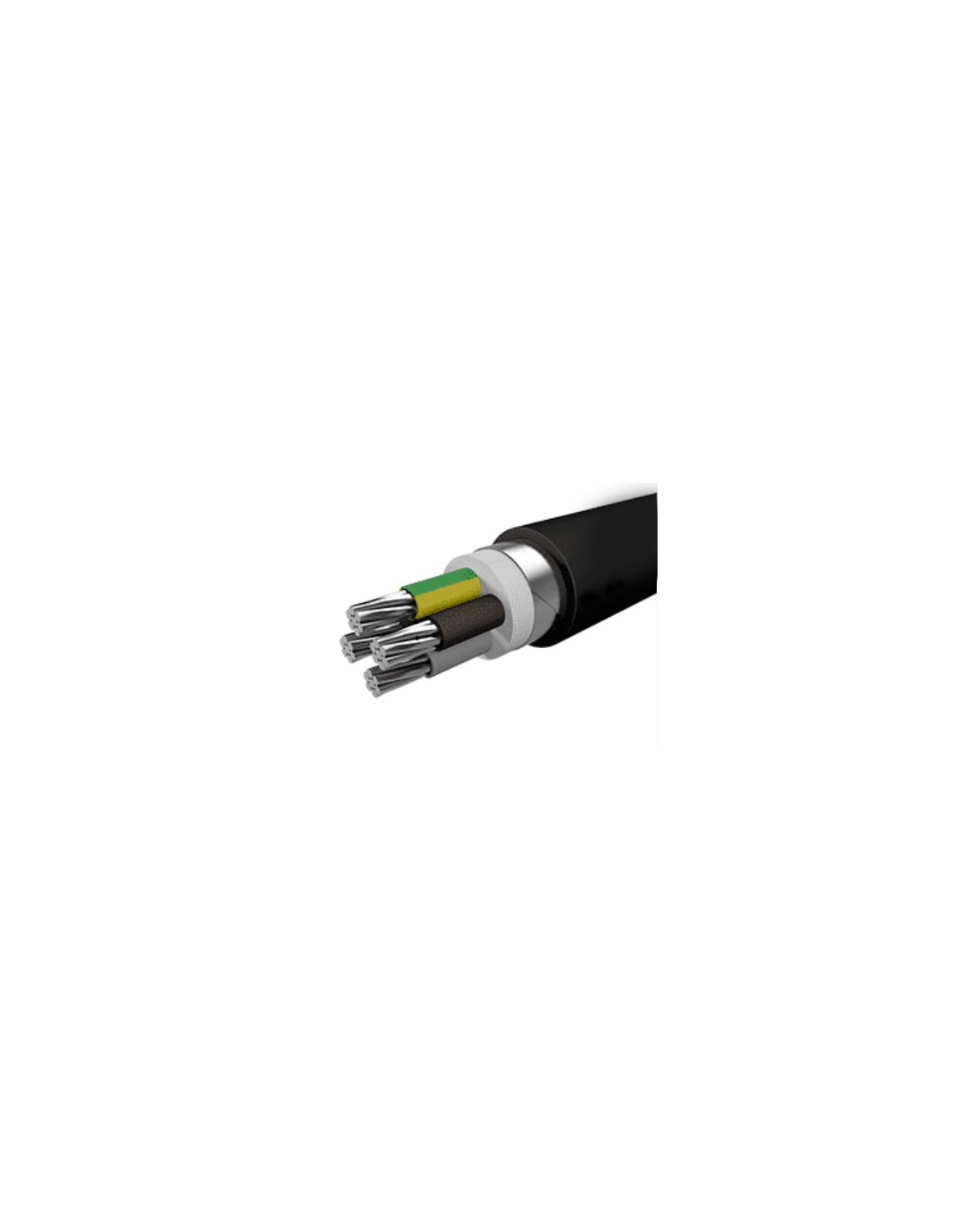

Cable U 1000 ARVFV

These cables are intended for industrial installations requiring mechanical protection.




Constitution

 Ame : Cuivre massif ou câblé/ Aluminium câblé (ARVFV)

 Isolation : PR

 Bourrage : PVC

 Armure : Deux feuillards acier

 Gaine : PVC noir

Caractéristiques

 Tension nominale : 1000 V

 Conducteur :

Cuivre massif (S ² 6mm2) classe 1

Cuivre câblé (S ³ 6 mm2) classe 2

Aluminium câblé classe 2 {ARVFV}

 Température max. admissible : 90° C En permanence / 250° C En court-circuit

 Repérage des conducteurs :

Disposition avec Vert et Jaune Brun- Bleu clair - V/J; Noir - Gris - Brun - V/J; Noir - Bleu clair - Brun - Gris - V/J

Disposition sans Vert et Jaune Brun-bleu ; Noir-bleu-brun (pour les sections 1,5 et 2,5 mm2); Brun-noir-gris (pour les sections ³ 4 mm2); Noir-bleu-brun-gris
