These cables are intended for Remote Control whenever mechanical protection is required.
Construction
Conductor : Solid copper
solution : PVC
Filler : PVC (or ruban d’assemblage)
Armure : Deux feuillards acier
Sheath : PVC Grey
These cables are intended for Remote Control whenever mechanical protection is required.

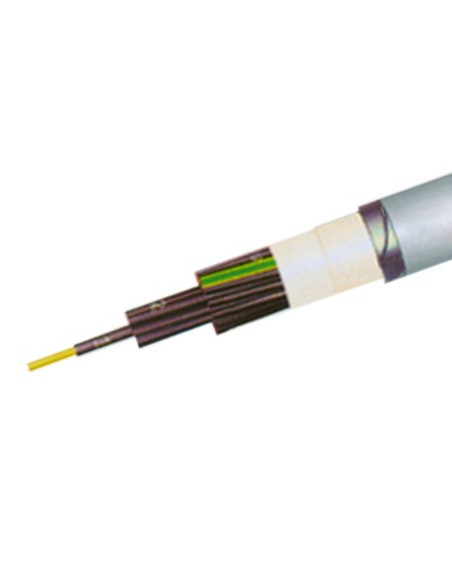

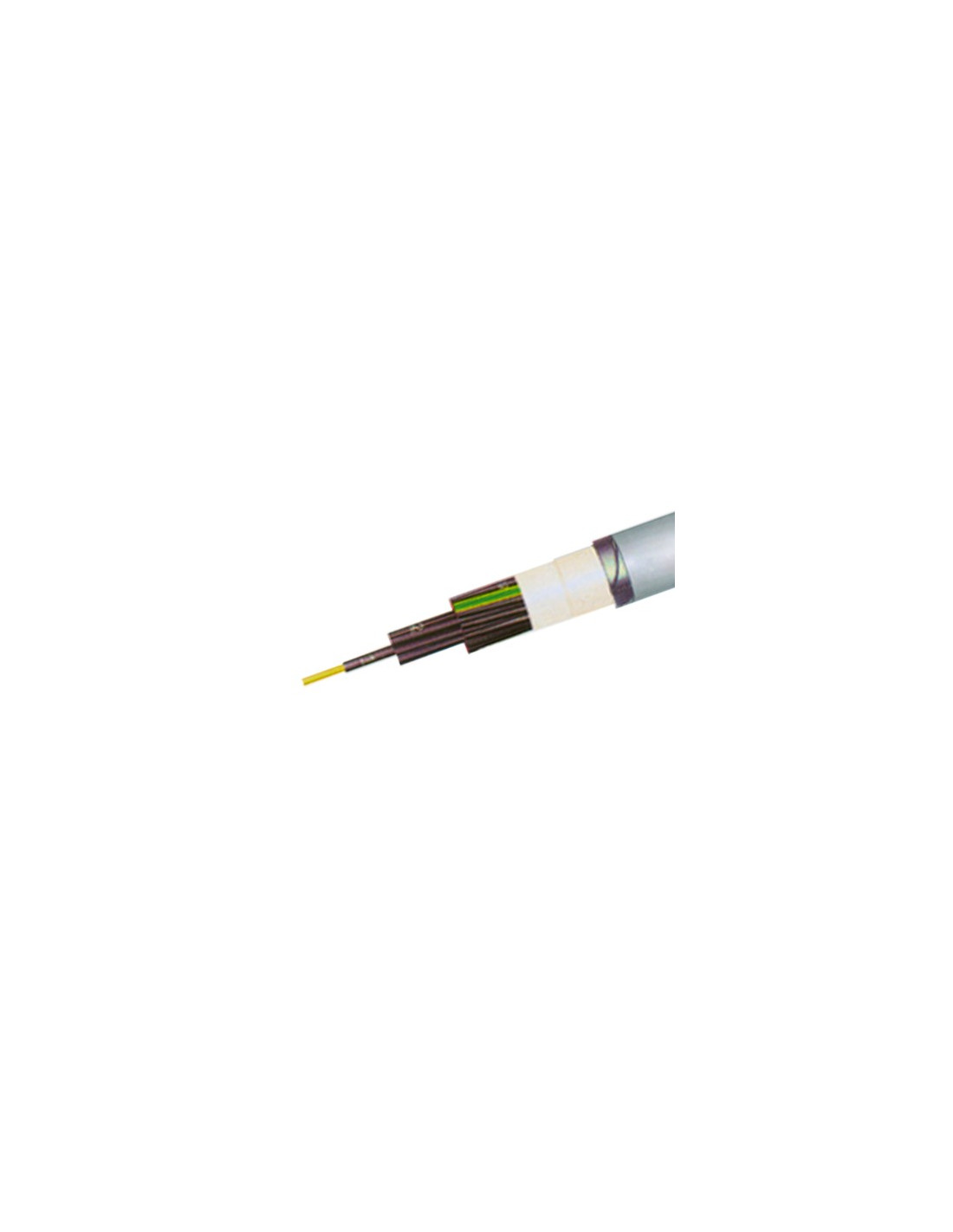

Construction :
Conductor : Solid copper
solution : PVC
Filler : PVC (or Assembly tape)
Armour : Two steel tapes
Sheath : PVC Grey
Characteristics :
Rated voltage : 0,6/1 KV
Conductor: class 1 solid copper
Maximum permissible temperature : 70° C continuous / 160° C short circuit
Conductor identification : Conductor black marqués en chiffres white 1,2,..., n-1 with a G/Y conductor last.
