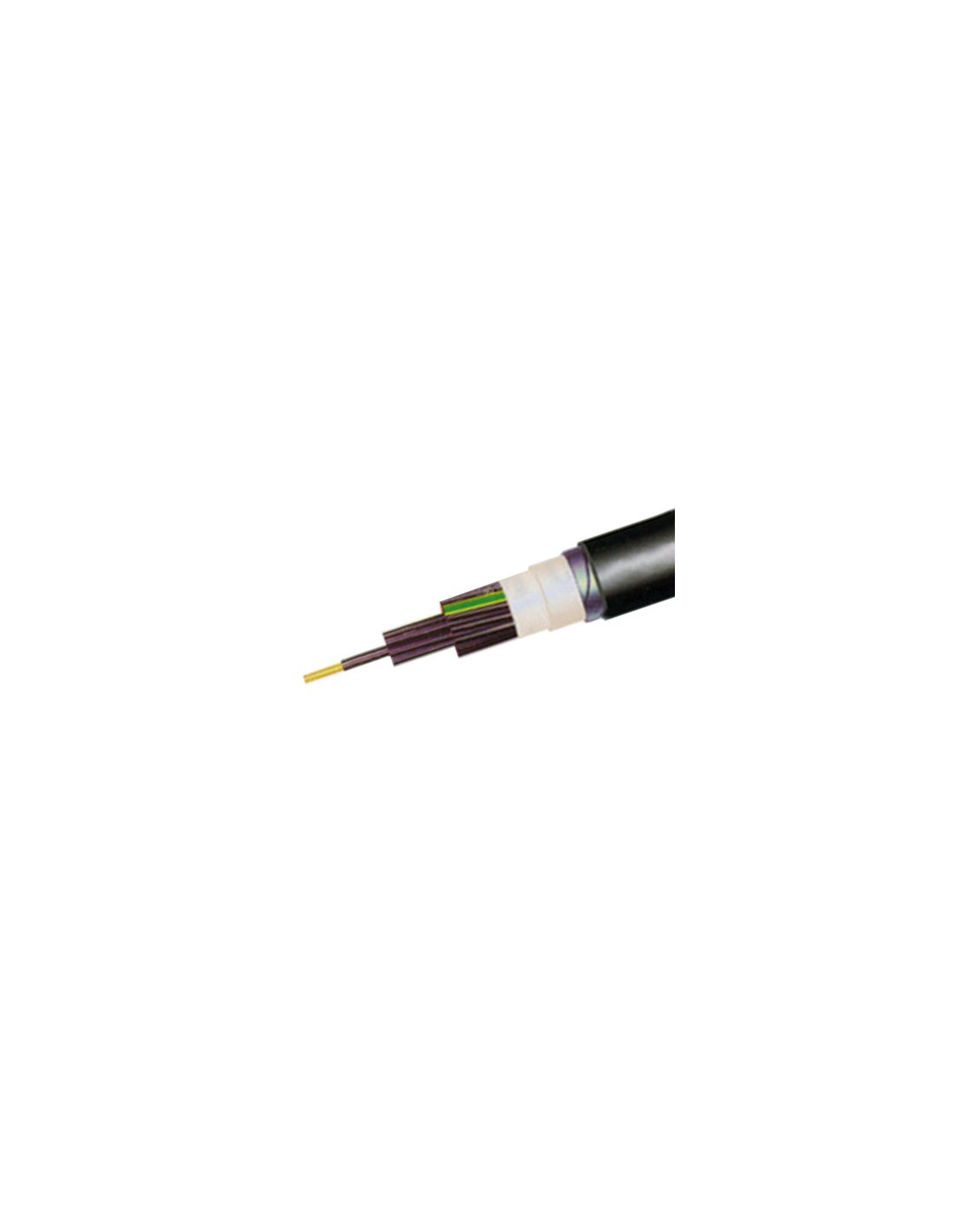

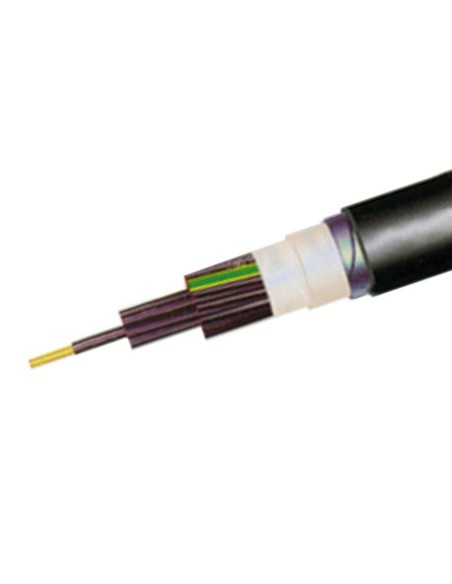

Electrical Cable U 1000 RVFV Remote Control

Name: Electrical Cable U 1000 RVFV Remote Control
Brand: I3C Group
SKU: NFC 32-322

This cable is recommended wherever mechanical protection is required.

Construction :

Conductor : Solid copper

Insulation : PRS

Filler : PVC

Armure : Deux feuillards acier

Sheath : PVC Black

Description
Product Details

This cable is recommended wherever mechanical protection is required.

Construction :

Conductor : Solid copper

Insulation : PRS

Filler : PVC

Armour : Two steel tapes

Sheath : PVC black

Characteristics :

Rated voltage : 0,6/1 kV

Conductor: class 1 solid copper

Maximum permissible temperature : 90° C continuous / 250° C short circuit

Conductor identification : Conductor black marqués en chiffres white 1,2,..., n-1 with a G/Y conductor last.

Reference NFC 32-322
