These cables are intended for industrial installations requiring mechanical protection.
Construction :
Conductor : Solid or stranded copper/ Stranded aluminium (ARVFV)
Insulation : PR
Filler : PVC
Armure : Deux feuillards acier
Sheath : PVC Black

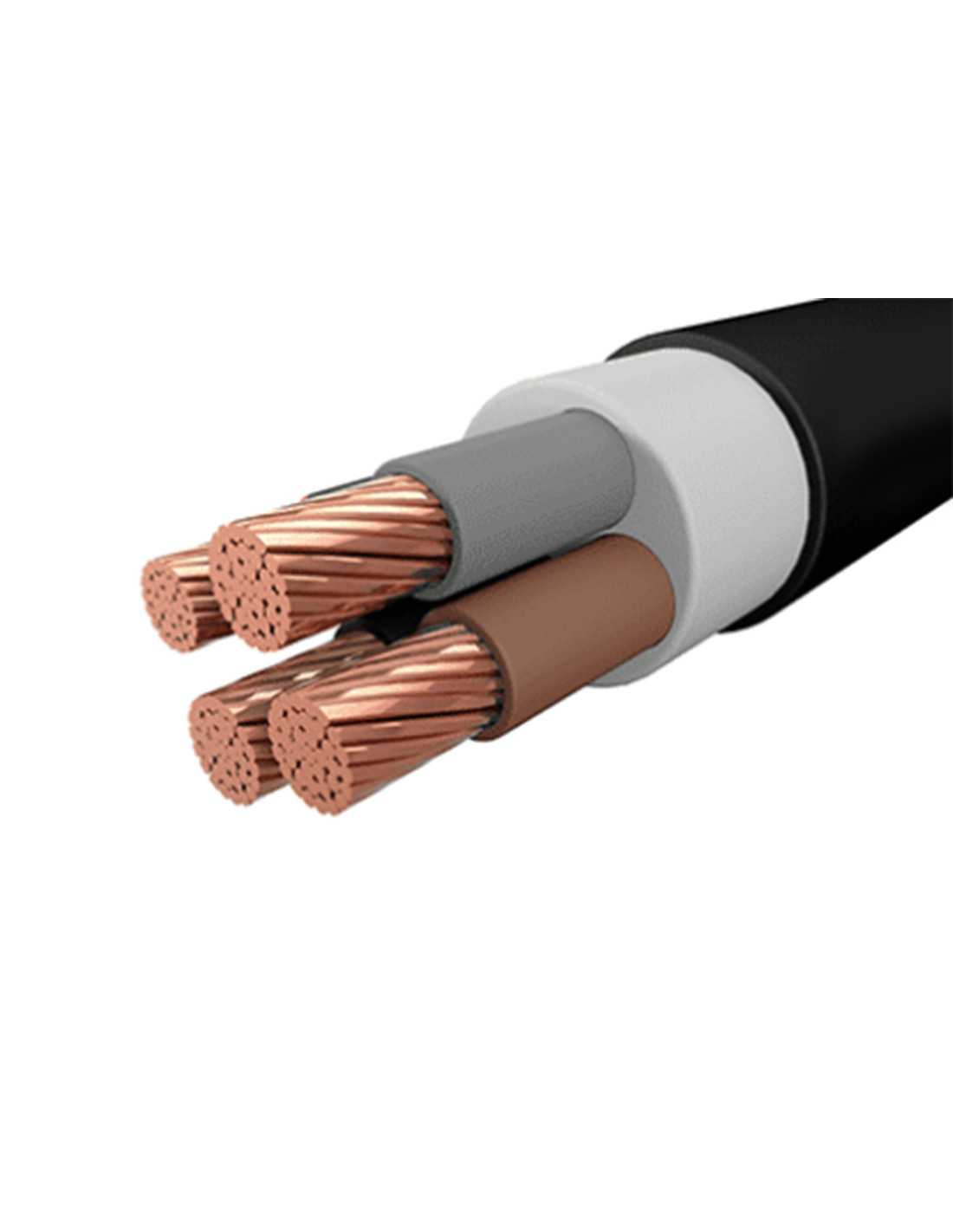

Cable U 1000 R2V
These cables are intended for industrial installations, building rising mains Street Lighting BT. This cable should not be used in ground that is flooded for more than two months a year.
Constitution
Ame : Cuivre nu ou étamé
Isolation : PR
Bourrage : PVC ou Ruban d’assemblage
Gaine : PVC noir
Caractéristiques
Tension nominale : 1000 V
Conducteur :
Cuivre massif classe 1
Cuivre massif classe 2
Température max. admissible : 85° C En permanence / 250° C En court-circuit
Repérage des conducteurs : Conducteurs noirs marqués en chiffres blancs 1,2,...., n-1 avec un conducteur V/J/en dernier
Comments (0)
No customer reviews for the moment.
16 other products in the same category:
Industrial LV Cables
Electrical Cable NYBY Remote Control
These cables are intended for Remote Control whenever mechanical protection is required.
Construction
Conductor : Solid copper
solution : PVC
Filler : PVC (or ruban d’assemblage)
Armure : Deux feuillards acier
Sheath : PVC Grey
These cables are intended for industrial installations, building rising mains Street Lighting BT. This cable should not be used in ground that is flooded for more than two months a year.
Construction :
Conductor : Solid or stranded copper /Stranded aluminium (AR2V)
Insulation : PR
Filler : PVC
Sheath : PVC Black
These cables are used for overhead lines in power distribution and transmission networks requiring high mechanical tension. They are also used as messengers to support overhead cables.
Construction :
Conductor : Stranded aluminium alloy (ALMELEC)
Insulation : ALMELEC NU GRAISSE
Industrial LV Cables
Electrical Cable NYY & NAYY
Ces câbles sont destinés aux installations industrielles.
Constitution :
Ame : Cuivre massif ou câblé/ Aluminium câblé (NAYY)
Isolation : PVC
Bourrage : PVC
Gaine : PVC gris
Caractéristiques :
Tension nominale : 0,6/1 Kv
Conducteur :
Cuivre massif (S b 6mm2) classe 1
Cuivre câblé (S a 6mm2) classe 2
Aluminium câblé classe 2{NAYY}
Température max....
Telecom Cables
Cable TELECOM CABLES 5/1 & 5/3
These cables are intended for individual subscriber service connections, particularly in built-up areas, taken from overhead network lines.
Construction
Conductor : Solid bronze
Insulation : TELECOM CABLES 5/1 & 5/3
Sheath : High-density PE Black
Commonly known as TH wire, this cable is intended for internal wiring and switchboard cabling,
in homes, offices and public buildings...
Construction:
Conductor: solid copper , cuivre câblé
Insulation: coloured PVC
Characteristics :
Rated voltage : HO7 V-U : 450/750 V & HO7 V-R : 300/500 V
Telecom Cables
Cable TELECOM Series 278 & 279
Series 278: Subscriber indoor connections.
Series 179 : Flame-retardant cable for indoor building installations
Construction :
Conductor: solid copper
Insulation: PE
Sheath: grey PVC, category C2 for serie 278
yellow PVC, category C1 for Series 279.
Characteristics :
Conductor: solid copper
Conductor identification : By quad (11-colour code)
This is a general-purpose cable, intended primarily for the wiring of domestic premises.
Construction
Conductor: solid copper / stranded copper
Insulation : coloured PVC
Filler : PVC
Sheath : PVC
Characteristics
Rated voltage : 300/500 V
Conductor :
FRN 05 VV-U Solid copper class 1
FRN 05 VV-R Stranded copper class 2
Conductor identification :...
Electrical Cable
Cable U 1000 ARVFV
These cables are intended for industrial installations requiring mechanical protection.
These cables are intended to supply mobile or semi-fixed domestic appliances. Do not use them for heat-producing appliances.
Construction :
Conductor: flexible copperInsulation: PVCFiller: PVCSheath: PVC
Characteristics :
Rated voltage : 300/300 V
Conductor: class 5 flexible copper
Maximum permissible temperature : 70° C continuous / 150° C short...
Ce câble est destiné aux installations industrielles, colonne montante d’immeuble, éclairage public BT. Il est déconseillé d’utiliser ce câble dans des terrains inondés plus de deux mois par an.
Constitution :
Ame : Cuivre nu ou étamé
Isolation : PR
Bourrage : PVC ou Ruban d’assemblage
Gaine : PVC noir
Telecom Cables
Cable TELECOM CABLES 5/9
These cables are intended for individual subscriber service connections, particularly in built-up areas, taken from overhead network lines.
Construction
Conductor : Solid annealed copper
Insulation : PEHD Black
Characteristics
Conductor : Bare Annealed Copper massif Æ = 0,74 ± 0,02 mm
LV Distribution Cables
Distribution Twisted Cable
These cables are intended for service connections and meter connections.
Construction :
Conductor: Aluminium câbléInsulation: PR Black
Characteristics :
Rated voltage : 0.6/1 kVConductor: Aluminium câblé classe 2Maximum permissible temperature : 90°C continuous / 250°C short circuitConductor identification :Neutre : Black with marquage...
Special cables
Electrical Cable Antenna Downlead 75 oméga/ Drop TV
Connection des terminaux de Visualisation
Constitution :
Ame : Cuivre nu
Isolation : Décente d’antenne 75 oméga/ Drop TV
Gaine : PVC
This cable is recommended wherever mechanical protection is required.
Construction :
Conductor : Solid copper
Insulation : PRS
Filler : PVC
Armure : Deux feuillards acier
Sheath : PVC Black
