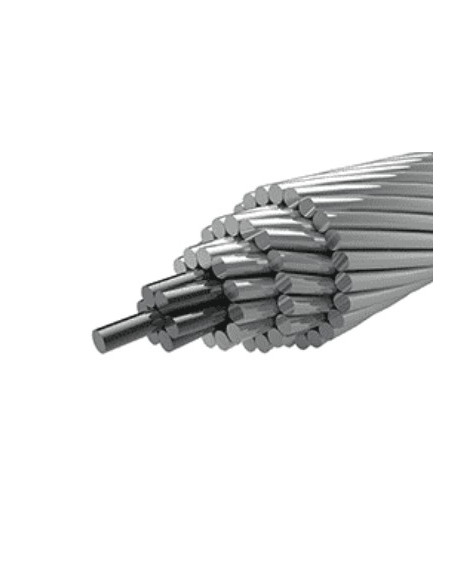

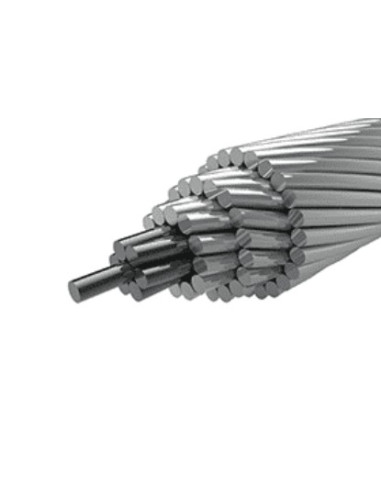

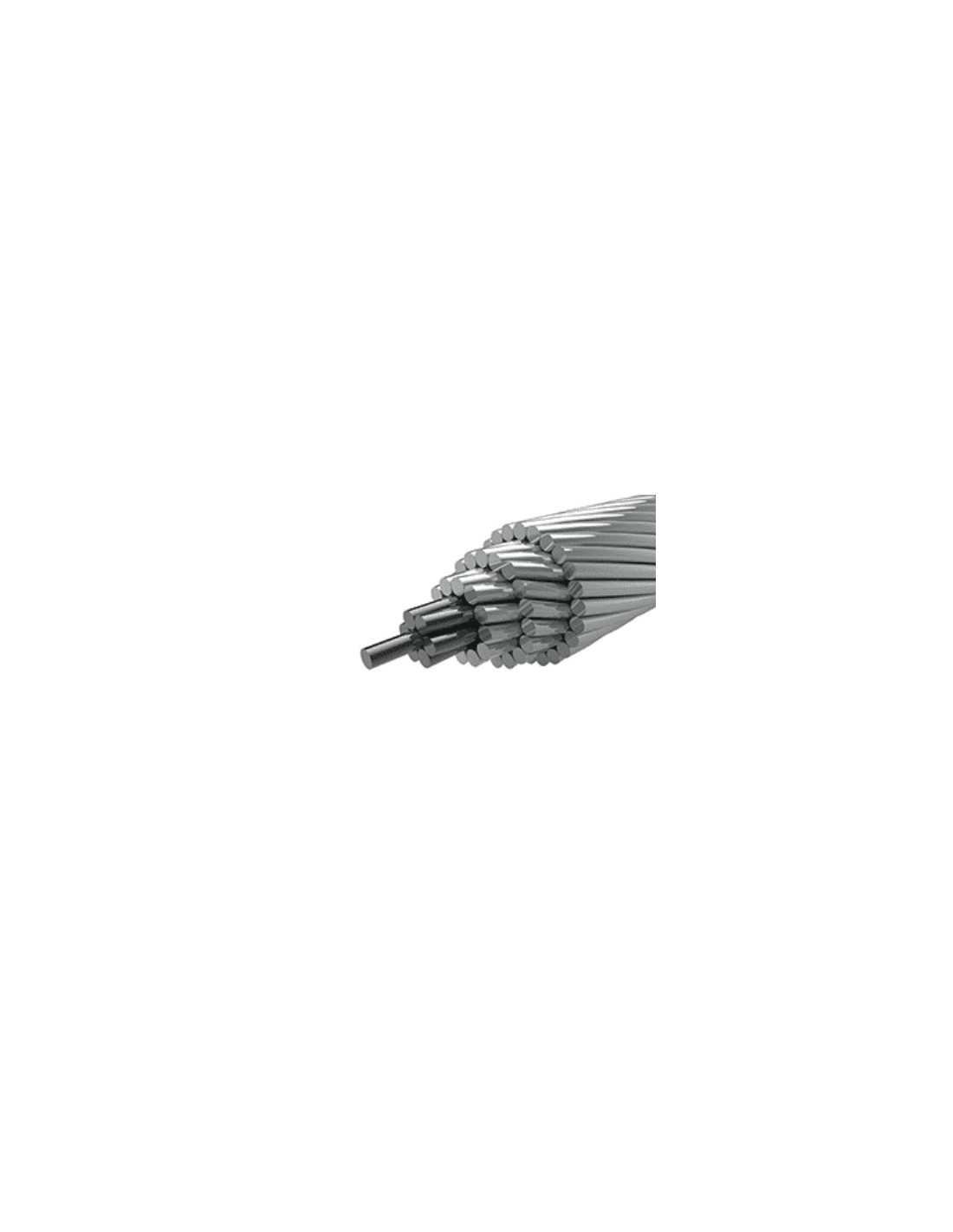

Bare or Greased Copper/Aluminium Cable

These cables are used for overhead lines in power distribution and transmission networks requiring high mechanical tension.

Construction

Conductor: Aluminium câblé (n couches)

Insulation: CONDUCTEUR ALUMINIUM / ACCIER NU GRAISSÉ




Characteristics

Rated voltage : H.T.A: > 1 kV& < 50kV / H.T.B : > 50 kV

Conductor : Stranded aluminium in opposing layers, reinforced by a central stranded galvanised steel conductor in opposing layers, forming the final conductor.
