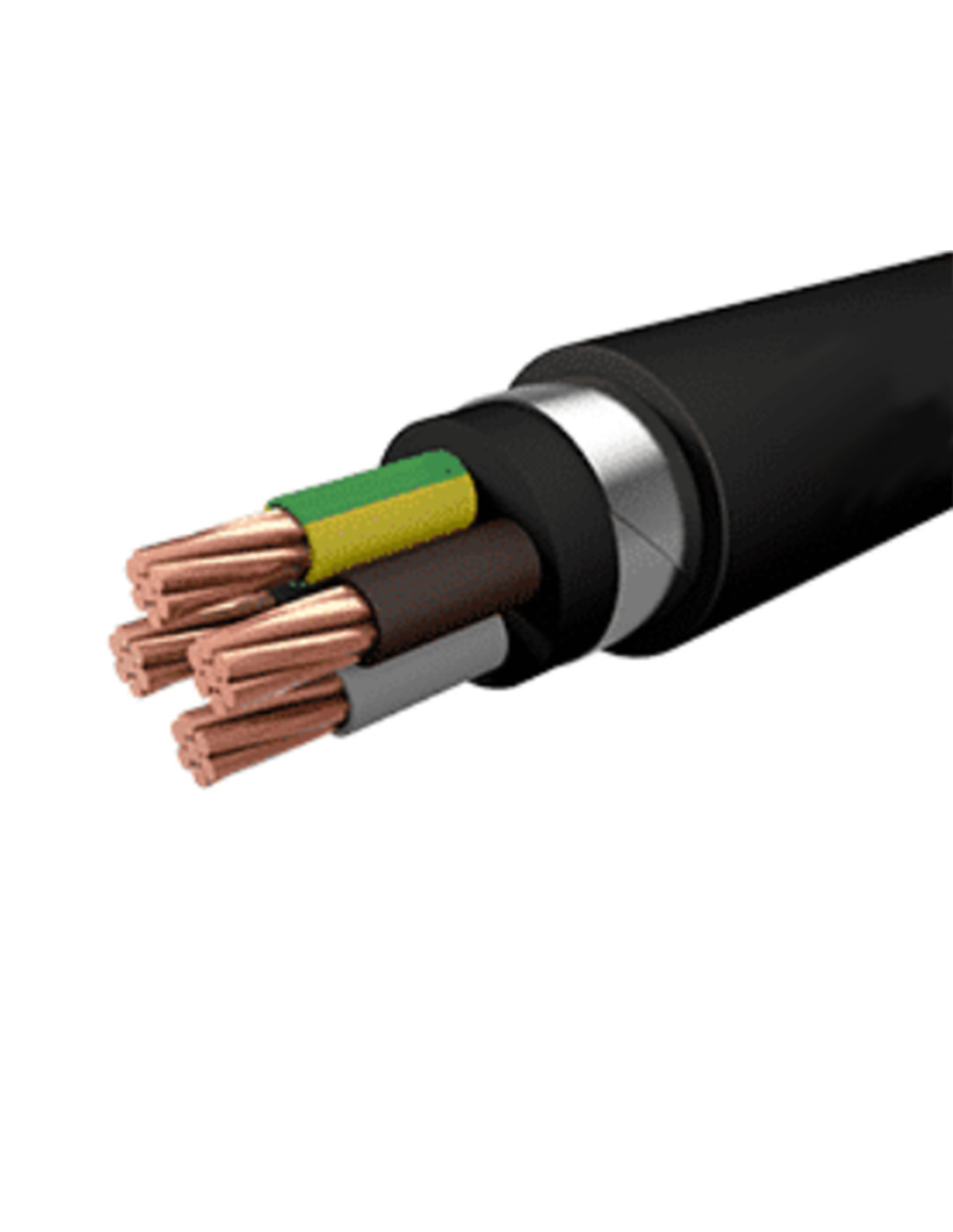

Cable NYBY

Construction

Conductor : Solid or stranded copper Stranded aluminium (NAYBY)

Insulation : PVC

Filler : PVC

Armour : 2 Feuillards en acier

Sheath : PVC

Characteristics

Rated voltage : 0,6/1 kV

Conductor: solid copper (S b 6 mm2) class 1

Stranded copper (S a 6 mm2) class 2

Class 2 stranded aluminium{NAYBY}

Maximum permissible temperature : 70° C continuous / 160° C short circuit

Conductor identification :

S b 25 mm2 : Black-bleu ; Black-bleu-V/J; Black-bleu-brun-V/J ; Black-bleu-brun-rouge-V/J

S > 25 mm2 : Black-bleu; Black-bleu-brun Black-bleu-brun-rouge ; Black-bleu-Black-rouge
