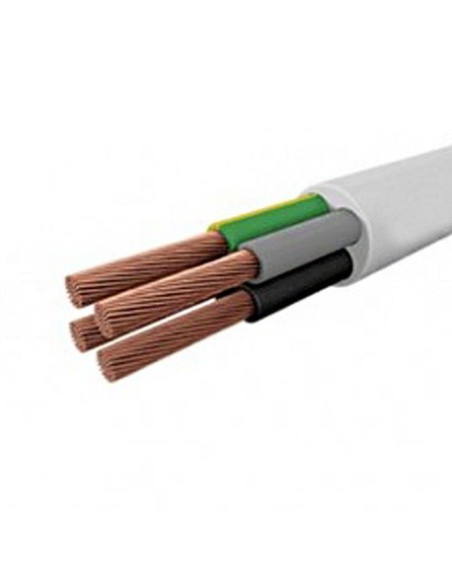

Electrical Cable HO5 VV5-F & AO5 VV5-F

Ces câbles sont destinés aux équipements de machines outils et pour toutes liaisons souples ou une protection contre la présence d’huile ou d’acide est recherchée.

Constitution

 Ame : Cuivre souple

 Isolation : PVC souple

 Bourrage : PVC souple

 Gaine : PVC souple,Gris,résistant aux huiles minéraux

Caractéristiques

 Tension nominale : 300/500 V

 Conducteur : Copper class 5

 Température max. admissible : 70° C En permanence / 160° C En court-circuit

 Repérage des conducteurs : Conducteurs noirs marqués en chiffres blancs :

* n a 3 : 1,2 ....n-1 avec un conducteur V/J en dernier

* n < 3 : sans conducteur V/J




These cables are intended for machine-tool equipment and all flexible connections where protection against oil or acid is required.

Characteristics :

Rated voltage : 300/500 V

Conductor : Copper class 5

Maximum permissible temperature : 70° C continuous / 160° C short circuit

Conductor identification : Black conductors numbered in white :

* n a 3 : 1,2 ....n-1 with a G/Y conductor last

* n < 3 : without Conductor G/Y

NFC 32-201-13 NFC 32-206
